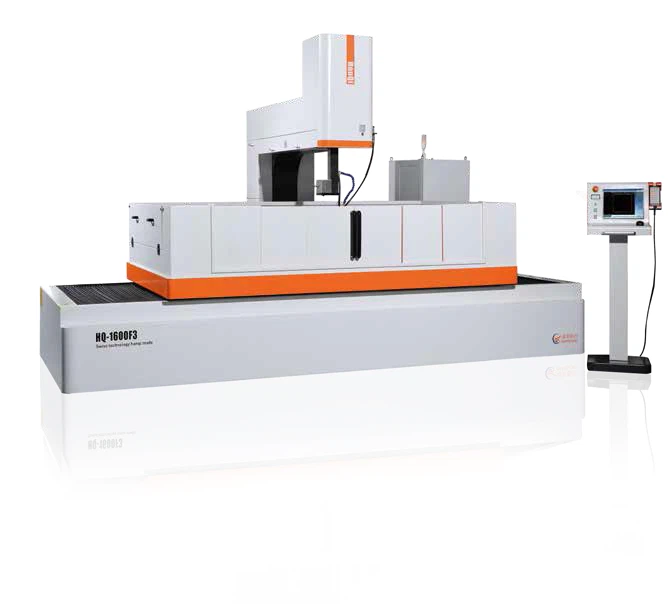

5-axis Control Servo Wire EDM Machine
5-axis control servo wire EDM machine is a five-axis CNC large-tapered middle speed edm wire cut machine. It realizes five-axis CNC four-axis linkage servo control. It adopts “one-piece” design, the electromechanical structure is more stable, and the covering area is smaller. This kind machine’s working principle is to use the continuously moving molybdenum wire as the electrode, and perform pulse spark discharge on the workpiece to remove metal and cut the molding. Suitable for high precision taper processing, high precision parts processing etc.
Benefits of 5-axis Control Servo Wire EDM Machine
Results in Minimal Burr Formation
5-axis control servo wire EDM machine excels at cutting hard and delicate materials without harming cutting tools or distorting material surfaces or edges. Its continuously moving wire ensures an accurate, burr-free finish, eliminating the need for additional deburring or cleanup.
Increased Productivity
The advanced control and automation features of a 5-axis servo wire EDM machine enable continuous and efficient machining, leading to higher throughput. The machine can handle more complex jobs in less time, boosting overall productivity.
Flexibility
A 5-axis control servo wire EDM machine allows for the machining of complex geometries and intricate features from multiple angles. This flexibility is critical for producing parts with challenging contours, undercuts and complex shapes.
Improved Surface Finish
The 5-axis control servo wire EDM machine provides precise movement and positioning of the wire, leading to a superior surface finish and higher precision. This is especially important in industries like aerospace and medical device manufacturing, where tight tolerances and high-quality finishes are required.
